CE MPPT home use full power wind generator 48v 2kw 3KW 1KW wind turbine 24v

Name: CE MPPT home use full power wind generator 48v 2kw 3KW 1KW wind turbine 24v
Brand: Eco Energy Shop
Price: 1950.0 USD
Availability: InStock

by Eco Energy Shop

SKU

Save 5%

$2,049.00

$2,049.00 - $2,049.00

$2,049.00

$1,950.00

$1,950.00 - $1,950.00

$1,950.00

In Stock & Ready to Ship

All orders are shipped within 1-2 business days. Product ETA 5-7 business days

Quantity

Horizontal-axis wind turbine
Blade form	Propeller
Blade number	3 pieces
Balde material	Glass fibre reinforced plastic
Type of generator	Permanent-magnet 3 phase AC
Type of tower	Guy wire or free standing
Power	5kW
Blade diameter	5.2m
Rated rotor speed	200r/min
Rated speed	8m/s
Rated power	5kW
Max power	7kW
Output voltage	48/96/220V
Start up wind speed	3m/s
Work speed	3-30m/s
Security wind speed	50m/s
High of tower	6/8/9/12m
Top quality except tower	310kg
Tower Steel tube model	φ250mm
Speed regulation	Leaning tail + electric brake

1. The wind wheel:Using three blades,laminar flow airfoil,high lift-drag and excellent performance.The blades use glass fiber reinforced plastic leaf fiber,with a large damping,good dynamic feature,and good toughness.Wind wheel and generator with flexible connections run smoothly without vibration or noise.

2. Generator:The overload strong bearing,long-lasting lubrication without maintenance.The rotor is made of permanent magnet (NdFeB),so it generates electricity when the rotating impeller drives generator rotor rotating.The wind is different from
ordinary electric motor,which is the ultra-low-speed motor,100 --- 400 per minute to switch that is able to meet the design power (depending on model),while such a low speed of the motor is unable to pronounce with ordinary electricity.

3. Switch controller:It is connected generators, batteries or network (if necessary),and electric-powered equipment,electrical installations.The system with different voltage sockets is user-friendly;rectifier that is issued by the three-phase AC generator changing into direct current. On grid and off grid style is optional .

4. Inverter:Wind generators are direct current through the battery output can only be used for the direct current electrical use,using AC appliances must be equipped with the DC into AC inverter,inverter can change from electrical power storing of battery to alternating current suitable for the standard of customers,and then provide utilization for electricity equipment.On grid an off grid is optional .

A: Grid TIE System

B: Off Grid System

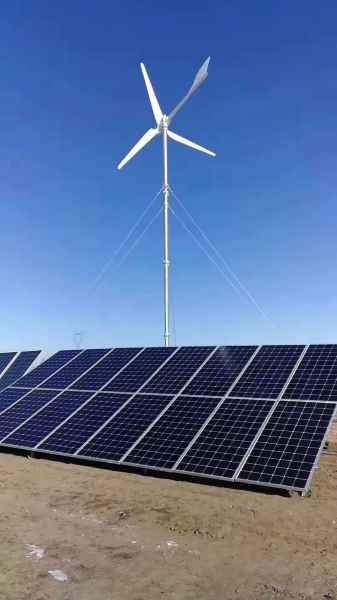

c: hybrid wind solar system

Features

1.Low speed permanent magnet generator. 2.Low starting torque,High generating efficiency. 3.Glassfibre high efficiency blades. 4.Neodymium magnets and bearing with high performance. 5.Yaw motor system(optional). 6.Designed for minimal maintenance and easy install. 7.Aerodynamic brake & manul brake.

8.WIFI APP function is optional.

Micro-computer intelligence controller

1.If the system meet problem ,and the wind turbine is running ,it can prevent the wind turbine race rotation . 2.have the auto-protection function of the batteries Reverse protection, anti-disconnect battery protection, battery damage protection. 3.when the charge current is high in strong wind,controller can load the wind turbine automatically. And charging the battery with low current. 4.The wind turbine brake automatically when the battery bank voltage get to rated voltage 125%; and stop charging the batteries. 5.the wind turbine get back charging the batteries when the the battery bank voltage get to rated voltage 108% 6.Controller with a manual emergency brake switch, users can use depending on the circumstances. Using this switch, the wind turbine will be brake.

7.Big LCD LED to show ral data , WIFI APP function is optional.

Pure sine wave inverter

1.Pure sine wave output can drive any household appliances. 2.Use integrated circuit, less wire connection. 3.Adopting micro-processor technology, improving system integration. 4.Excellent protection includes over voltage shutdown, under voltage shutdown, over load protection, short circuit .protection, over thermal protection, etc. 5.Be able to work in wind power or wind&solar hybrid system. 6.With high efficiency transformer instead of high frequency e-circuit design. 7.Automatic regulate voltage. 8.LCD display operation status. 9.High running stability and reliability. 10.True sine wave form power output. 11.High efficient transformer isolation. 12.Buzzer alarm while over-loading/voltage, high-temperature.

13.Users can adjust the data upon the local real working situation.

1. Household wind motor

2. Wind turbines for parks

3. Offshore wind turbine

4. Grassland Wind Turbine

Our company Qingdao Allrun New Energy co., ltd, is specialized in producing wind products and solar products, such as wind power system, solar panel , and other solar products. The company also owns an independent research on wind energy products of multiple power levels from 150W to 500KW, which have been widely used in independent off-grid wind power system, on-grid wind power system, wind-solar hybrid street light system, wind -solar hybrid home power system, wind-diesel hybrid system and etc.And welcome you to visit our website: www.qdallrun.cn to know more about our company and the products! We have about ten years in this area ,not only can products our own brand products, but also can design the system to the requirement from our clients. We have a 10 personed r&d team to do the development to meet the requirement from the market. Customers from Europe, America, Australia, Canada, New Zealand, South Africa and Asia. have already established reliable cooperation ship with us, and appreciated for our good service, fast delivery, honest communications, good quality and combative price. This is also the reason we can stand here so many years. And also hope you can cooperate with us in long term because of our advantage. Thanks!

Please feel free to contact me if there is any further question about it.

Review from clients

Q1:What size do you produce? A1:Allrun can produce from 150W to 300KW wind turbine, can supply parts or whole unit. Q2:Which style do you produce? A2:Allrun can produce both on grid and off grid, horizon style and vertical style. we can adjust to what you need. Q3:What the warranty? A3:Allrun can offer 20 years warranty. Q4:What about the delivery? A4:Allrun can delivery goods in 7days after payment , and also we can help you ship all over the world, you know we have our own shipping forwader.
