No. of Cells: 108 cells
Dimension: 1722×1134×30 mm
Weight: 22 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimension: 1722×1134×30 mm
Weight: 22 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs

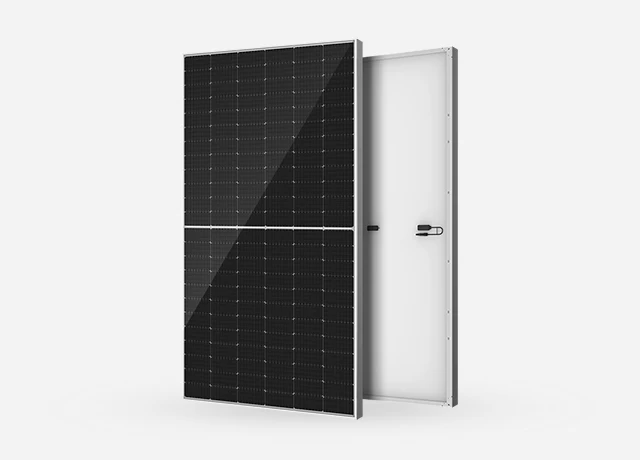

Jinko Bifacial Dual Glass Hjt Photovoltaic Solar Panel 430W 550W 600W 610 W 665W Solar Panels Jinko Tiger Pro N Type
SKU
Save 25%
Original price
$600.00
Original price
$600.00
-
Original price
$600.00
Original price
$600.00
Current price
$450.00
$450.00
-
$450.00
Current price
$450.00
In Stock & Ready to Ship
All orders are shipped within 1-2 business days. Product ETA 5-7 business days
Key attributes
Industry-specific attributes
Cell size
210mmx210mm
Type
Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON
Panel Efficiency
22%
Warranty
25-years
Other attributes
Place of Origin
Anhui, China
Panel Dimensions
2278*1134*35
Brand Name
Jinko Solar
Model Number
Tiger Neo
Keyword
Jinko Solar Panel
Backsheet
High transparency solar glass 2.0mm
Back Side Glass
High transparency solar glass 2.0mm
Material
Monocrystalline Silicon
Frame
Silver / Black, anodized aluminium alloy
Application
Residencial,Commercial & Industry
Junction Box
IP68 Rated, 3 Diodes
Weight
33.6kg
Bifaciality
70±5%
Wind/Snow Load
2400Pa/5400Pa
Product Description
Tiger Neo Series
|
Model
|
Cell Types
|
Watts
|
Cells
|
Size
|
Package
|
|
Tiger Neo
N-type 54HL4-B
|
N type mono perc cell 182×182mm
|
395-415Watt
|
108 (6×18)
|
1722×1134×30mm
|
36pcs/pallet 936pcs/40HQ
|
|
Tiger Neo
N-type 54HL4-B
|
N type mono perc cell 182×182mm
|
410-430Watt
|
108 (6×18)
|
1722×1134×30mm
|
36pcs/pallet 936pcs/40HQ
|
|
Tiger Neo
N-type 54HL4-B
|
N type mono perc cell 182×182mm
|
460-480Watt
|
120 (6×20)
|
1903×1134×30mm
|
36pcs/pallet 864pcs/40HQ
|
|
Tiger Neo
N-type 54HL4-B
|
N type mono perc cell 182×182mm
|
555-575Watt
|
144 (6×24)
|
2278×1134×35mm
|
31pcs/pallet 620pcs/40HQ
|
|
Tiger Neo
N-type 54HL4-B
|
N type mono perc cell 182×182mm
|
550-570Watt
|
144 (6×24)
|
2278×1134×35mm
|
36pcs/pallet 720pcs/40HQ
|
|
Tiger Neo
N-type 54HL4-B
|
N type mono perc cell 182×182mm
|
595-615Watt
|
156 (2×78)
|
2465×1134×35mm
|
31pcs/pallet 496pcs/40HQ
|
|
Tiger Neo
N-type 54HL4-B
|
N type mono perc cell 182×182mm
|
590-610Watt
|
156 (2×78)
|
2465×1134×35mm
|
36pcs/pallet 576pcs/40HQ
|
Power Range: 410-430W
Power Range: 460-480W
No. of Cells: 120 cells
Dimension: 1903×1134×30mm
Weight: 24.2 kg
Modules per box: 36pcs
Modules per 40' container: 864pcs
Dimension: 1903×1134×30mm
Weight: 24.2 kg
Modules per box: 36pcs
Modules per 40' container: 864pcs
Power Range: 565-585W
No. of Cells: 144 cells
Dimension: 2278×1134×35mm
Weight: 28 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Dimension: 2278×1134×35mm
Weight: 28 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Power Range: 610-630W
No. of Cells: 156 cells
Dimension: 2465×1134×35mm
Weight: 30.6 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Dimension: 2465×1134×35mm
Weight: 30.6 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Tier 1 Solar Module

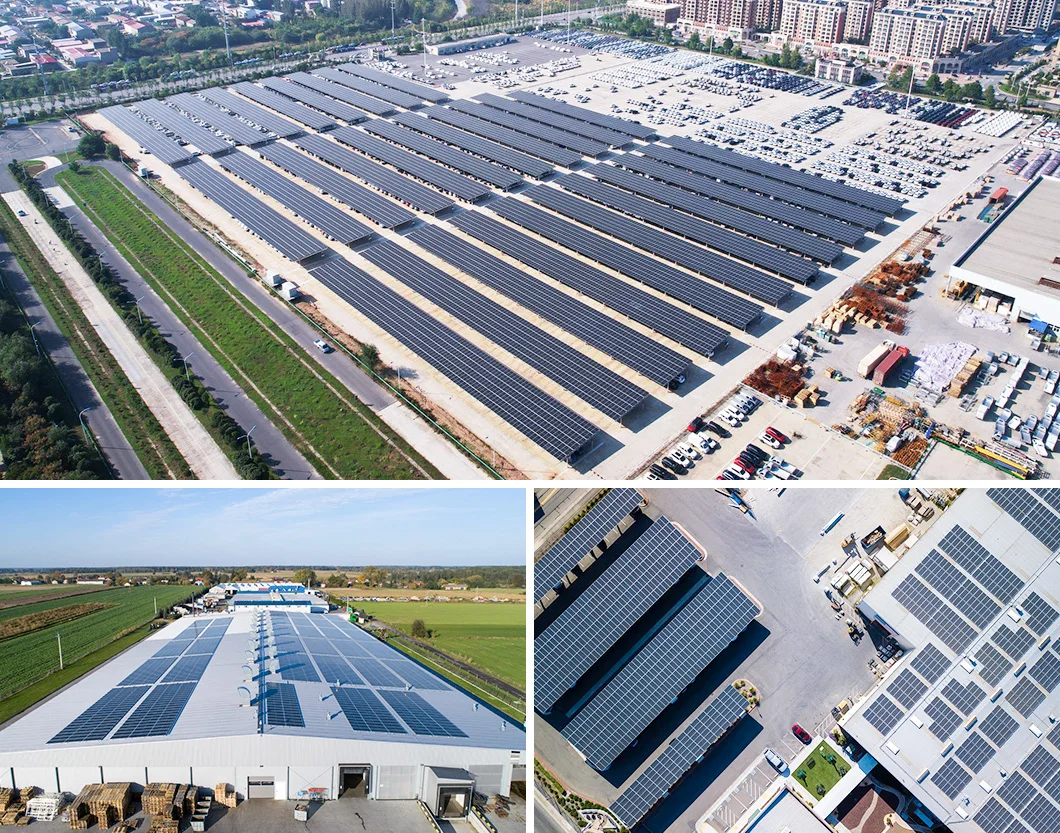

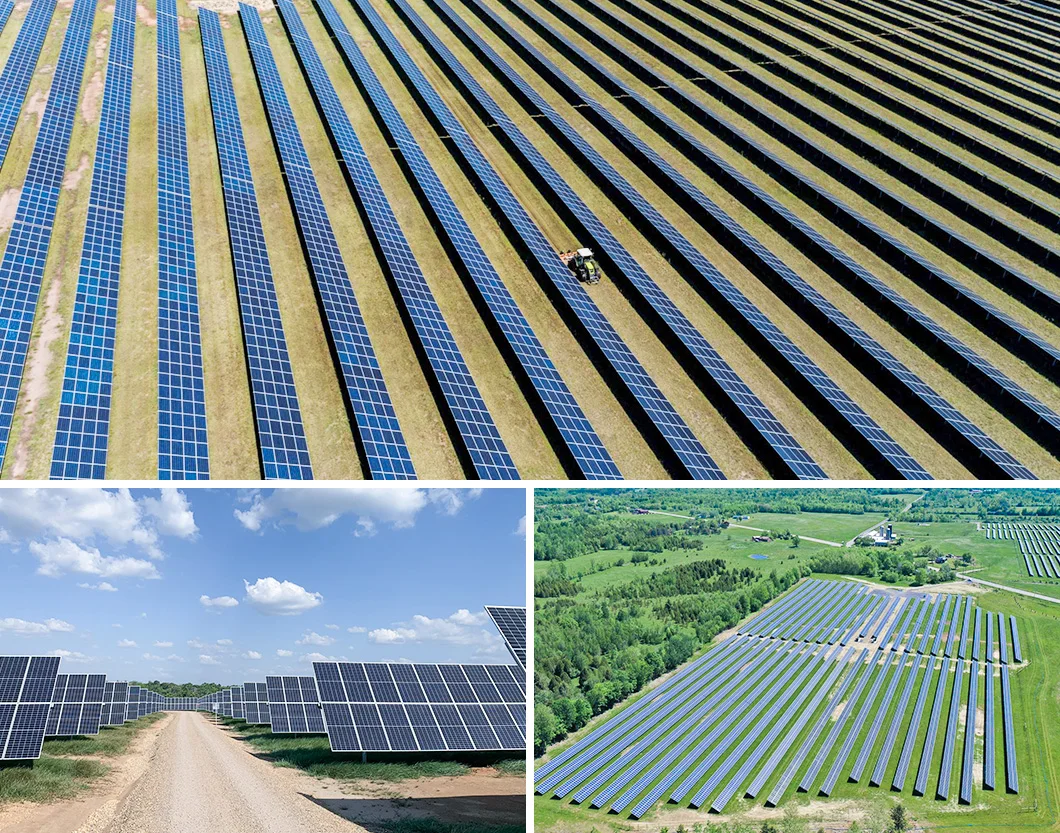

Project Case
Company Profile
Company Overview
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels. Sunpal is accredited as Batch I Smart Manufacturing Plant by Jiangsu Government, the Witness Laboratory Accreditation Certificate (WMTC) by CSA、DEKRA, and CTF Laboratory Certificate by TUV SUD. Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000
square meters, with 600 experienced employees.
square meters, with 600 experienced employees.
